Commercial RO Plants & Industrial Water Filtration Systems
Springwell Water Tech engineers high-capacity commercial reverse osmosis plants (100 to 10,000 LPH), automated sand filters, activated carbon systems, and swimming pool filtration. Designed for high-TDS groundwater across Surat, South Gujarat, and pan-India industrial applications.

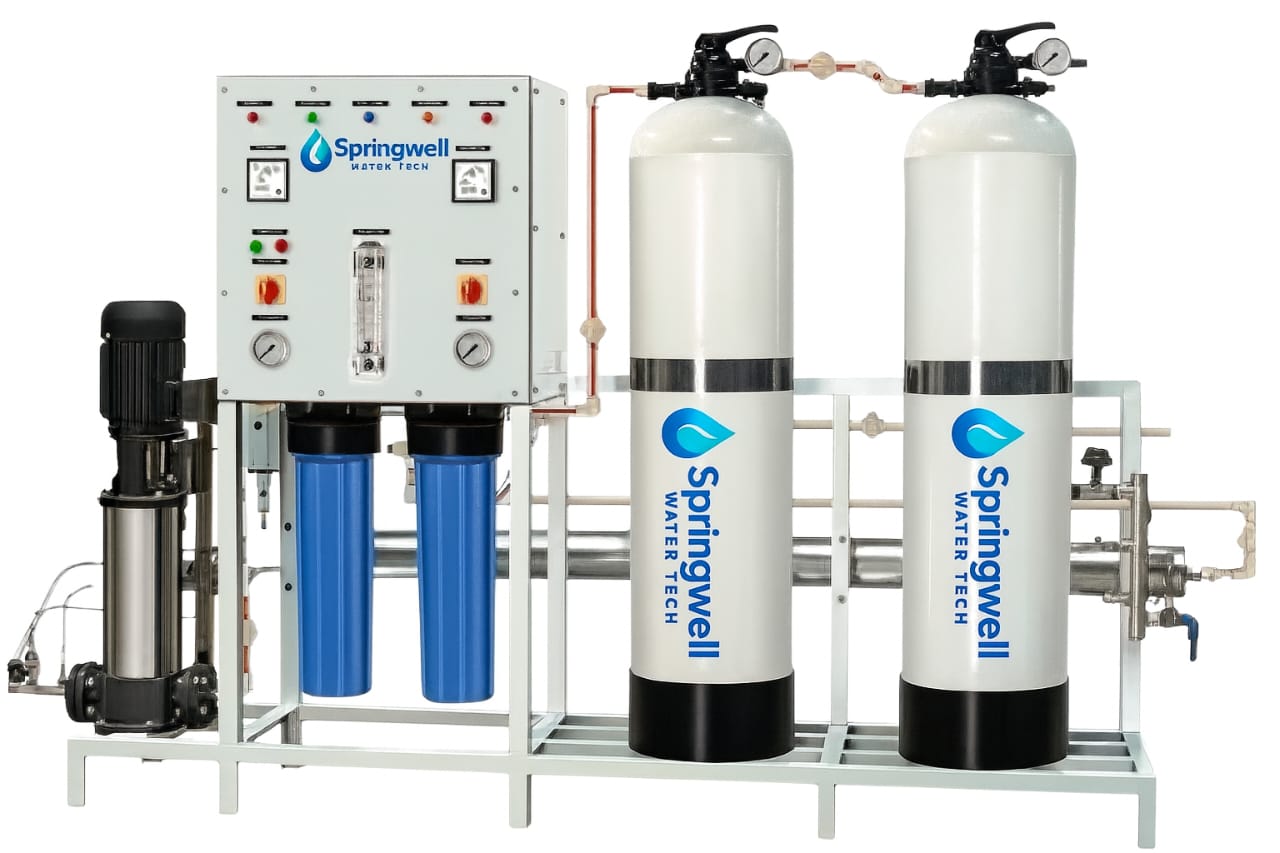

Commercial RO Plant for Business & Industrial Water Treatment
Operating a commercial kitchen, hotel, hospital, or manufacturing facility with high-TDS borewell water puts critical equipment and operations at risk. Untreated dissolved salts leave chalky mineral crusts on glassware, scale up high-pressure boilers, and compromise the consistency of food, beverage, and chemical processes.
Springwell commercial RO plants deliver reliable, high-volume reverse osmosis filtration engineered specifically for Gujarat's challenging groundwater conditions. Available in capacities from 100 to 10,000 LPH, our systems reduce high dissolved solids through industrial-grade membrane filtration backed by smart PLC automation.
Industrial Skid MountedReliable High-Volume Demineralization for Operations
Every business requires a specific water profile. A textile dyeing plant needs low-mineral softness, a hospital requires low-conductivity water for sterilization autoclaves, and commercial kitchens demand scale-free water for combi-steamers. Our commercial RO plants are calibrated to your required output quality.
Commercial RO Plant Technical Specifications
Verified manufacturing and operational benchmarks for Springwell industrial reverse osmosis units:
| Specification Parameter | Standard Technical Detail | Engineering Context |
|---|---|---|
| Capacity Range | 100 to 10,000 LPH | Sized according to peak hourly demand and daily operating schedule |
| Maximum Feed TDS | Up to 10,000 TDS (mg/L) | Engineered for saline borewells and brackish water sources across Gujarat |
| System Recovery Rate | 60% – 75% | Balances clean water production against membrane scaling risk |
| Operating Mode | Fully Automatic | PLC-controlled cycles with digital safety cutoffs and auto-flushing |
| Power Supply | 3-Phase Industrial (415V, 50 Hz) | Supplied with dedicated motor protection circuit breaker (MPCB) panel |
| Membrane Architecture | Industrial RO Membranes | High-rejection 4040 or 8040 TFC polyamide elements in FRP/SS vessels |
| Frame Construction | Stainless-Steel Skid | Corrosion-proof SS 304 framework engineered for commercial plant rooms |
| Control Automation | PLC-Based Automation | Integrates remote monitoring, auto-flush, and low/high-pressure safety trips |
What Is a Commercial RO Plant?
A commercial reverse osmosis (RO) plant is a continuous water-purification facility that forces pressurized feed water through semi-permeable spiral-wound membranes. Unlike media filters that merely trap physical dirt particles, reverse osmosis operates at the molecular scale.
Under high pressure generated by multi-stage vertical pumps, water molecules diffuse through the microscopic pores of the polyamide membrane sheets. Dissolved mineral salts (TDS), chlorides, sulphates, heavy metals, and bacterial microorganisms cannot pass through and are swept away in a concentrated reject stream. The result is pure, low-salinity water tailored for industrial machinery and commercial food service.
What Reverse Osmosis Reduces:
- Dissolved Salts (TDS) & Chlorides
- Heavy Metals (Lead, Arsenic, Iron)
- Calcium & Magnesium Scaling Minerals
- Suspended Colloids, Turbidity & Organic Matter
How Does a Commercial RO System Work?
Industrial reverse osmosis relies on a synchronized 5-stage mechanical and membrane treatment process:
Raw Water Inflow
Feed water is drawn from borewells, sumps, or tankers via an initial raw water feed pump into the treatment manifold.
Pre-Treatment
Water passes through an automatic sand filter and carbon filter to trap dirt and chlorine before it touches the membranes.
High-Pressure Drive
A vertical multi-stage stainless-steel pump raises water pressure (10–18 bar), overcoming the natural osmotic pressure of the high-TDS water.
Membrane Separation
Clean permeate water passes through the semi-permeable membrane pores into the central product tube to feed your clean storage tank.
Reject Management
High-salinity reject brine carrying concentrated minerals is flushed continuously through a flow meter, preventing scale on membrane sheets.
Engineered System Features
Springwell commercial RO plants are manufactured with high-durability industrial hardware built for demanding duty cycles:
PLC-Based Automation
Automated programmable logic control panel synchronizes high and low pressure switches, automated flush cycles, and tank level switches without requiring manual valve intervention.
Energy Recovery Optimization
Engineered with efficient multi-stage vertical booster pumps and hydraulic balance circuits that minimize power consumption per 1,000 litres of treated water.
Remote Monitoring Capability
Integrated digital conductivity meters, flow sensors, and pressure gauges provide real-time visibility into permeate TDS and membrane performance.
Stainless-Steel Skid Construction
Rigid, vibration-damped 304-grade stainless-steel framework prevents rust and corrosion in damp plant rooms, ensuring long operational life and clean industrial aesthetics.
100 to 10,000 LPH Capacity Range
Modular Skid designs allow scaling from compact 250 LPH units for cafes and clinics up to 10,000 LPH skids for large manufacturing and textile plants.
Up to 10,000 TDS Handling
Heavy-duty brackish water membrane elements operate reliably across high-salinity borewells without premature membrane compaction or flux degradation.
Commercial & Industrial Applications
Water quality parameters differ significantly across commercial industries. Springwell configures plants for:
Hotels & Resorts
Protects steam ovens, commercial dishwashers, ice machines, and espresso stations from scale. Delivers clear drinking and cooking water across guest suites.
Hospitals & Healthcare
Supplies consistent low-conductivity water for central sterilization units (CSSD), autoclaves, pathology equipment, and clinical washing stations.
Restaurants & Cloud Kitchens
Eliminates spots on cutlery, ensures standard recipe taste, and prevents boiler burnout in commercial combi-steamers and Bain Maries.
Textile & Manufacturing
Supplies low-mineral process water for fabric dyeing, chemical blending, cooling towers, and boiler feed water to prevent mineral staining and tube scale.
Shopping Malls & Complexes
Provides high-volume purified water for centralized drinking water stations, cooling tower HVAC loops, and food court tenant operations.
Schools, Colleges & Hostels
High-capacity point-of-use water for student mess facilities, hostel dining halls, chemistry laboratories, and campus drinking water chillers.
How to Choose the Right Commercial RO Plant Capacity
Selecting a commercial RO plant is an engineering calculation based on your business demand profile:
Peak Hourly Demand
Do you need water spread evenly across 12 hours, or a rapid surge during 3-hour kitchen rush periods? Peak flow dictates hourly pump sizing.
Operating Hours
Running a plant 8 to 12 hours per day allows operating margins and routine backwash. Facilities running 24/7 require duplex redundancy.
Feed Water TDS
Water with 1,000 TDS requires different membrane pressures than 4,500 TDS borewells. Higher TDS requires larger membrane surface areas.
Storage Buffer
Pairing your plant with an adequate SS or food-grade storage buffer allows your RO plant to refill during off-peak hours automatically.
Commercial RO vs. Domestic Under-Sink RO
Comparing home purifiers with commercial-grade reverse osmosis plants:
| Factor | Domestic RO | Commercial RO Plant |
|---|---|---|
| Primary Use | Household kitchen | Hotels, hospitals & plants |
| Flow Output | 12 to 25 LPH | 100 to 10,000 LPH |
| Daily Output | 30 to 80 Litres | 1,000 to 100,000+ Litres |
| Pump Drive | Small DC Diaphragm | 3-Phase Multi-Stage Vertical |
| Framework | Plastic wall-mount | Stainless-Steel Skid (SS 304) |
Commercial RO Plant vs. Water Softener
Many business owners confuse water softeners with reverse osmosis systems. They solve different water treatment needs:
Why Water Testing Precedes System Sizing
Never select a commercial RO plant based on assumptions. Groundwater chemistry varies dramatically even across adjacent plots in Gujarat. Before finalizing your skid layout, we evaluate:
- Total Dissolved Solids (TDS): Determines membrane salt-rejection and pump pressure.
- Hardness (Ca & Mg): Determines whether pre-softening or anti-scalant dosing is needed.
- pH & Turbidity: Establishes required pre-filtration media depths and chemical compatibility.
Commercial RO Plants in Surat & Industrial Gujarat
Springwell Water Tech is based in Vesu, Surat. From the textile and chemical estates of Sachin, Pandesara, and Hazira to the commercial hospitality hubs across VIP Road, Dumas Road, and Piplod, we understand the specific challenges of coastal and inland Gujarat groundwater.
Questions About Commercial RO Plants
Practical answers for business owners and facility engineers:
Need an Engineered Commercial RO Solution for Your Facility?
Speak directly with our Surat application engineers. We will analyze your raw feed water parameters, calculate flow requirements, and provide a comprehensive proposal.

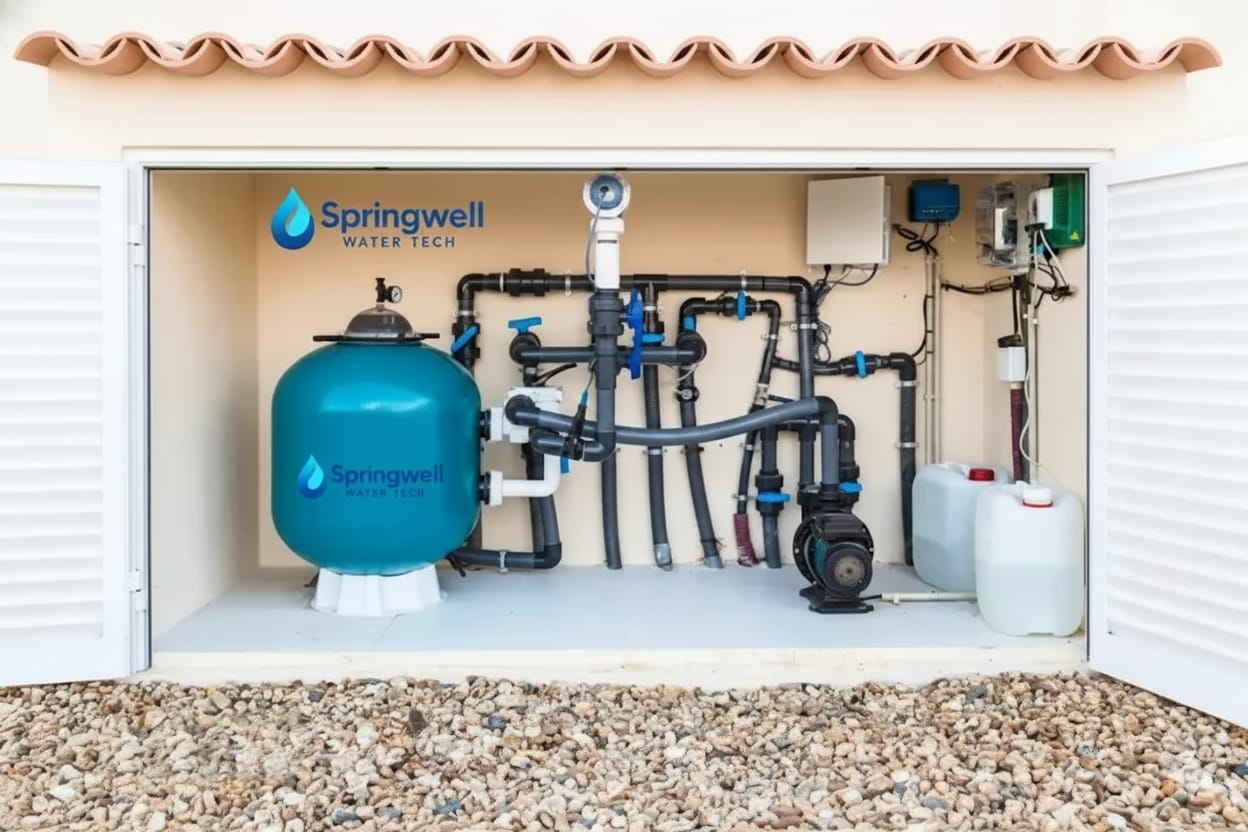

Swimming Pool Water Circulation & Filtration Systems
When pool water turns cloudy or greenish, or when swimmers complain of stinging eyes, the problem is rarely just a lack of chlorine. In nine out of ten cases, the real culprit is poor hydraulic circulation, an undersized pump, or dead flow zones where water stagnates. Springwell designs complete commercial and residential pool filtration circuits engineered for total water clarity and hygienic safety.
Pool Hygiene & Chemical Balance
Our systems seamlessly integrate with automated chemical dosing systems (chlorine generators, pH balancers, and UV sterilizers) to eliminate algae blooms, chloramine odors, and surface scum without harsh chemical over-dosing.
Self-Priming Circulation Pumps
Heavy-duty thermoplastic motors with integrated oversized strainer leaf baskets and corrosion-proof mechanical seals designed for continuous 24/7 duty.
Filament-Wound FRP Filter Tank
High-strength composite fiberglass tank tested to 4 bar, loaded with multi-grade quartz silica sand or recycled glass media for filtration down to 5 microns.
6-Function Multiport Valve
Easily switch between Filter, Backwash, Rinse, Waste (direct drain vacuuming), Recirculate (chemical dispersal), and Closed winter shutdown.
Complete Hydraulic Fittings
Wide-mouth surface skimmers, anti-vortex anti-entrapment main drains, multi-directional wall return nozzles, and waterproof LED pool lighting.
| Pool Type & Volume | Filter Dia | Pump Power | Flow Rate | Sand Media |
|---|---|---|---|---|
| Plunge Pool / Jacuzzi (10k–20k L) | 450 mm (18") | 0.75 HP | 55–80 LPM | 45 kg |
| Private Villa Pool (40k–70k L) | 650 mm (26") | 1.5 HP | 180–250 LPM | 145 kg |
| Clubhouse Pool (1.2L–2.0L L) | 900 mm (36") | 3.0 HP | 400–550 LPM | 350 kg |
| Hotel / Resort Pool (3.0L–5.0L+ L) | 1200 mm Dual Bank | Dual 3.0 HP Pumps | 800–1200 LPM | 800+ kg |

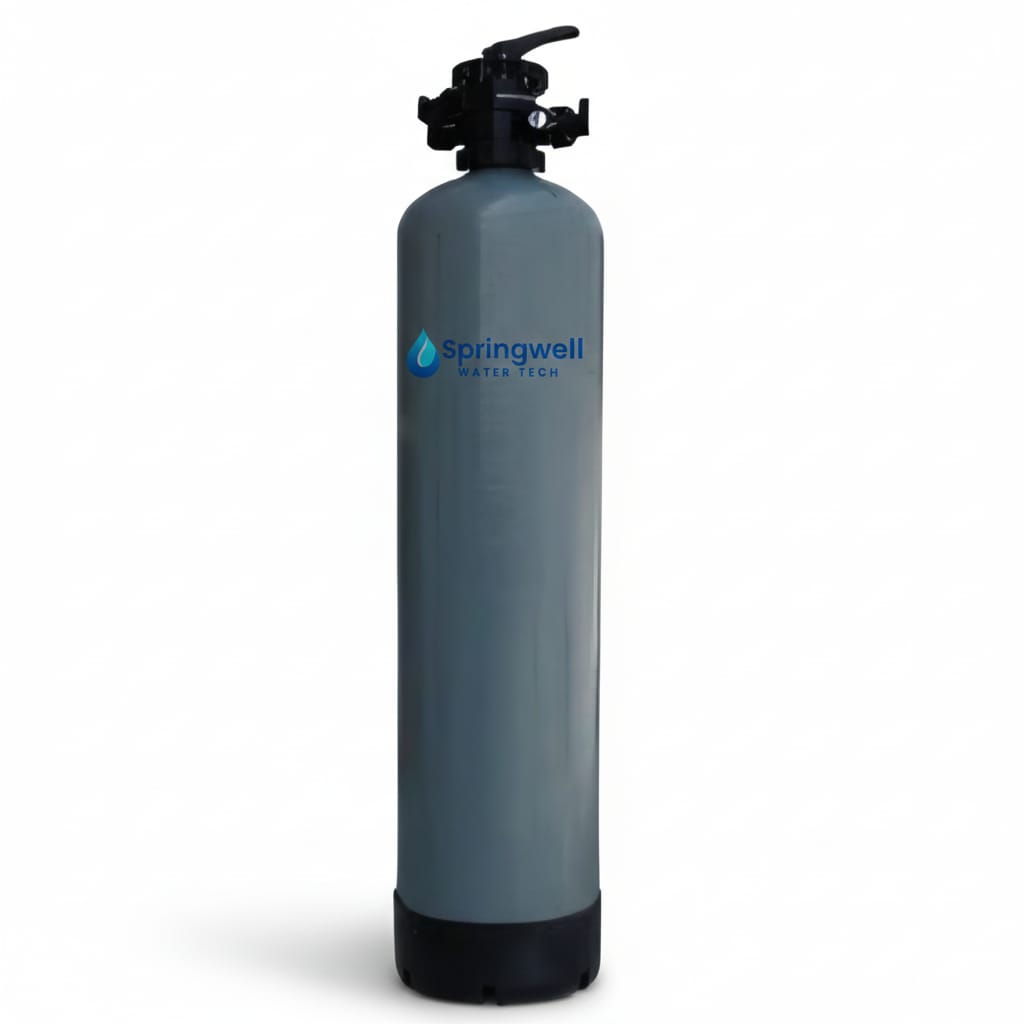

Automatic Multi-Grade Sand Filter (Pressure Sand Filtration)
Borewell and tanker water in Surat frequently carry visible suspended matter—silt, fine sand, colloidal clay, and pipe rust flakes. If raw water enters a water softener without pre-filtration, these suspended particles coat the resin beads, permanently destroying exchange capacity within months. If it feeds an RO plant, it rapidly chokes membranes. An automatic sand filter acts as your plumbing system's essential frontline defense.
Single-media filters clog quickly on the top 2 inches of sand, creating massive pressure drops. Springwell uses four carefully stratified layers: coarse gravel underbed (10–12mm), support gravel (4–6mm), coarse quartz sand (1–2mm), and top high-purity fine silica sand (0.5–1.0mm). This distributes particulate capture across the full depth of the bed.
High-purity river quartz with high spherical uniformity.
Tested for continuous high-pressure booster line service.
Triggers backwash via timer or pressure differential switch.
Epoxy-wrapped composite shell with zero metal rust risk.
Automatic Self-Cleaning Backwash Cycle
1. Service Mode: Raw water flows downward through the sand bed, trapping suspended particles down to 20–30 microns while clarified water exits via bottom collector laterals.
2. Automated Backwash: At a preset time (typically 2:00 AM) or upon reaching a pressure differential of 0.8 bar, the valve reverses water flow upward. This expands the sand bed by 30–40%, violently scouring away trapped mud and discharging it to drain.
3. Fast Rinse: Downward flush rinses the bed and settles the media layers before returning to normal service.
Automatic Activated Carbon Filter (Chlorine & Odor Removal)
Chlorine is added to municipal water to kill bacteria, but it is a powerful chemical oxidizer. If free chlorine enters a commercial RO plant, it irreversibly shreds the delicate polyamide membrane chemistry within days, causing complete salt rejection failure. In water softeners, chlorine permanently oxidizes cation resin beads into brittle mush. An activated carbon filter completely neutralizes chlorine and adsorbs organic contaminants.
A typical commercial RO membrane set costs ₹40,000 to ₹1,50,000+. Without activated carbon dechlorination, raw chlorine attack destroys membranes without warning. Springwell carbon filters maintain chlorine levels below 0.05 PPM, safeguarding your equipment investment.
Ultra-high microporous surface area (>1,000 m²/gram).
Eliminates musty swamp smells and chemical tastes.
High-flow bottom hub-and-lateral distributor system.
Backed by periodic on-site iodine & chlorine testing.
Automated Fluidization & Bed Regeneration
Over time, static carbon beds develop hydraulic "channeling" where water cuts narrow pathways without contacting the active carbon granules. Springwell automatic digital multiport valves perform scheduled reverse-flow flushes to lift, expand, and redistribute the carbon bed, ensuring 100% of the media participates in chemical adsorption.
Compare Our 4 Industrial Filtration Systems
Identify the right filtration technology for your facility's specific water parameters:
| System Parameter | Commercial RO Plant | Pool Filtration | Automatic Sand Filter | Automatic Carbon Filter |
|---|---|---|---|---|
| Primary Function | Dissolved Salt (TDS) Reduction | Pool Clarity & Debris Removal | Turbidity & Silt Removal | Chlorine & VOC Adsorption |
| Capacity Spectrum | 100 to 10,000 LPH | 5,000 to 5,00,000 Litres | Custom Flow Rates | Custom Flow Rates |
| Primary Applications | Hotels, Hospitals, Factories | Hotels, Resorts, Clubs | Pre-treatment for Softeners & RO | RO Pre-treatment, Food Processing |
| Control Automation | PLC-Based Industrial Panel | Automated Backwash Panel | Digital Multiport Valve | Digital Multiport Valve |
| Key Advantage | Handles up to 10,000 TDS | Hygienic, Crystal Clear Water | Protects Downstream Equipment | Protects Membranes from Chlorine |
Need Expert Industrial Filtration Advice?
Our engineers test your water source, calculate flow requirements, and design complete commercial RO and filtration skids matched to your exact site layout.
Springwell Water Tech • Serving Surat, Navsari, Bardoli, Ankleshwar & Industrial Gujarat.
